This article contains the FAQs for the BN800 Series Ninja® Professional Plus Kitchen System with Auto-iQ®. This supports the following product SKUs BN800, BN800C, BN801, BN801C, BN805A and DB805A.

How do I clean the unit?

Before cleaning, separate all parts. For Hand Washing: Wash all containers in warm, soapy water with a soft cloth. Wash blade assemblies in warm, soapy water using a dishwashing utensil with a handle to avoid direct contact with the blades. Exercise care when handling blade assemblies, as the blades are sharp. Thoroughly rinse and air-dry all parts. When Using a Dishwasher: All attachments are dishwasher safe. It is recommended that the containers, lids, and blade assemblies be placed on the top rack of the dishwasher ONLY. Ensure the blade assembly is removed from its container before placing in the dishwasher. Exercise care when handling blade assemblies. Cleaning the Motor Base: Turn off the unit and unplug the motor base before cleaning. Wipe motor base with a clean, damp cloth. DO NOT use abrasive cloths, pads, or brushes to clean the base.

How do I turn off a program?

If using a preset program, it will start immediately and will automatically stop when blending is complete. To stop blending before the end of the program, press the currently active button again. If using a manual program, select your desired speed. Once the ingredients have reached your desired consistency, press the active button again, and wait for the unit to come to a complete stop.

What are the preset programs for the pitcher?

SMOOTHIE Make a batch of super-smooth, sippable drinks and shakes from fresh or frozen fruit, liquids, and ice. ICE CRUSH Turn ice, juices, and fruit into expertly blended frozen drinks.

What are the manual programs for the pitcher?

LOW, MEDIUM, and HIGH When selected, each of these speeds runs continuously until turned off. They do not work in conjunction with any Auto-iQ programs. PULSE Offers greater control of pulsing and blending. Operates only when PULSE is pressed. Use short presses for short pulses and long presses for long pulses.

How do I install the pitcher lid?

Place the lid on the pitcher, aligning the triangle symbol on the lid with the triangle symbol on the handle. Press down on the handle until it clicks into place. The triangle symbols MUST be aligned for the lid to lock and the unit to operate.

How do I install the pitcher on the base?

Lower the pitcher onto the motor base. The handle should be aligned slightly to the right and the pitcher should be oriented so the LOCK symbols are visible on the motor base. Rotate the pitcher clockwise until it clicks into place.

How do I remove the pitcher from the base?

To remove the pitcher from the motor base, turn the pitcher counterclockwise and then lift straight up.

How do I install the stacked blade assembly in the pitcher?

Exercising care, grasp the stacked blade assembly by the top of the shaft and place it onto the gear inside the pitcher. Note that the blade assembly will fit loosely onto the gear.

What is Auto-iQ?

Auto-iQ is a set of intelligent preset programs that combine unique blending and pausing patterns that do the work for you.

What is the maximum capacity of the pitcher?

Max liquid capacity - 64 ounces Total capacity - 72 ounces

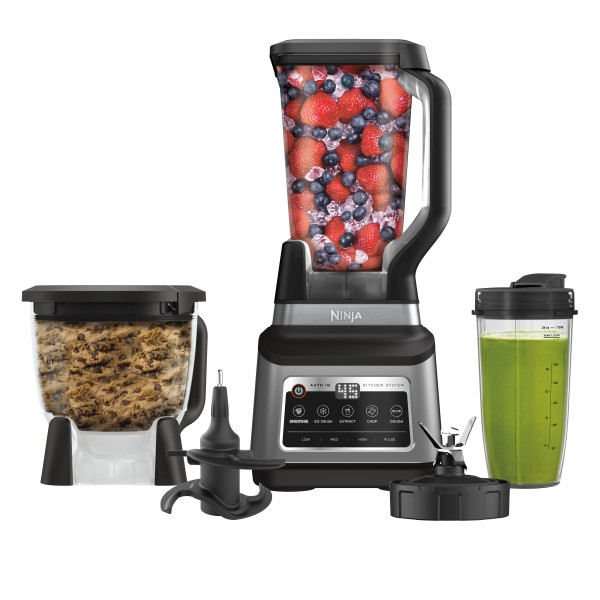

What is included with my blender model?

Motor Base Total Crushing Pitcher Stacked Blade Assembly Pitcher Lid Single-Serve Cup Pro Extractor Blades Assembly Spout Lid Precision Processor Bowl Dough Blade Assembly Chopping Blade Assembly Precision Processor Bowl Lid NOTE: Number of Single-Serve Cups and Spout Lids vary by model.

How do I assemble the single-serve cup and blade assembly?

After you add ingredients to the single-serve cup, place the Pro Extractor Blades Assembly onto the top of the cup and twist blade assmebly clockwise until it seals tightly.

What is the maximum capacity of the single-serve cup?

Max liquid capacity: 16 ounces Total capacity: 24 ounces

What are the preset programs for the single-serve cup?

SMOOTHIE Make super-smooth, sippable drinks and shakes in your cup, using fresh or frozen fruit, liquids, and ice. ICE CRUSH Turn ice, juices, and fruit into expertly blended frozen drinks. EXTRACT Ideal for tough, leafy, or fibrous whole fruits and vegetables, including their skins, seeds, and stems.

What are the manual programs for the single-serve cup?

LOW, MEDIUM, and HIGH When selected, each of these speeds runs continuously until turned off. They do not work in conjunction with any Auto-iQ programs. PULSE Offers greater control of pulsing and blending. Operates only when PULSE is pressed. Use short presses for short pulses and long presses for long pulses.

How do I install the single-serve cup on the base?

To install the single-serve cup, turn the cup upside down and place on the motor base. Align the tabs on the cup with the slots on the base, then rotate cup clockwise until it clicks into place. Once the cup is locked in place, press the Power button to turn unit on. The available program buttons will illuminate and the unit will be ready for use.

How do I remove the single-serve cup from the base?

To remove the cup from the motor base, turn the cup counterclockwise and then lift straight up.

How do I install the Precision Processor Bowl on the base?

Lower the Precision Processor bowl onto the motor base. The handle should be aligned slightly to the right and the pitcher should be oriented so the LOCK symbols are visible on the motor base. Rotate the pitcher clockwise until it clicks into place.

How do I remove the Precision Processor Bowl from the base?

To remove the bowl from the motor base, turn the bowl counterclockwise and then lift straight up.

How do I install the Chopping blade assembly or Dough Blade assembly in Precision Processor Bowl?

Exercising care, grasp the desired Blade Assembly by the top of the shaft and place it onto the gear inside the bowl. Once the blade is assembled in the bowl, add ingredients to the bowl, making sure not to exceed the MAX FILL line. Note that the Chopping Blade Assembly will fit loosely onto the gear.

How do I install the Precision Processor Lid?

Place the lid on the Precision Processor Bowl, with black line on tab aligned slightly to the right of tab on front of bowl. Turn lid clockwise to lock in place. When properly locked, the white line on lid will line up with the black line on bowl. Once the lid is locked in place, press the Power button to turn the unit on. The available program buttons will illuminate and the unit will be ready for use.

What are the Auto-iQ programs for the Precision Processor Bowl?

CHOP Timed pulses and pauses to give you consistent chopping results. DOUGH Ideal for creating delicious dough for pizza, bread, and baked goods like cookies.

What are the manual programs for the Precision Processor Bowl?

LOW, MEDIUM, and HIGH When selected, each of these speeds runs continuously until turned off. They do not work in conjunction with any Auto-iQ programs. PULSE Offers greater control of pulsing and blending. Operates only when PULSE is pressed. Use short presses for short pulses and long presses for long pulses.

What is the maximum capacity of the Precision Processor Bowl?

Total capacity: 64 ounces

How do I remove the base from the counter?

To remove the base, grip either side of the base and lift straight up.

Which parts are dishwasher safe?

The following parts are dishwasher safe (we recommend placing all parts on the top rack of the dishwasher): Total Crushing Pitcher Stacked Blade Assembly Pitcher Lid Single-Serve Cup Pro Extractor Blades Assembly Spout Lid *64 oz. max liquid capacity Precision Processor Bowl Dough Blade Assembly Chopping Blade Assembly Precision Processor Bowl Lid
